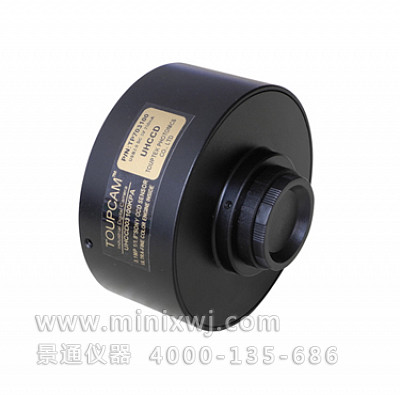

由于該產品已多次升級更新換代，我們無法保證Puda 300D專業CCD顯微鏡相機的圖片和參數等信息為最新最全面信息，我們強烈建議推薦您點擊此處聯系我們的在線工程師，他將給您推薦最專業的產品，同時我們也歡迎您來電咨詢：!
HARDWARE?CONFIGURATION?硬件配置參數:
|
Image?Pickup?Device?圖像傳感器 |
SONY?ICX412AQF |
|
Scan?Mode?掃描模式 |
Interlaced?隔行掃描 |
|
Max.?Resolution?Zui高分辨率 |
2048?x?1536?(Approx.?3,100,000?Pixels) |
|
Sensor?Size(Diagonal)?傳感器尺寸 |
1/1.8“?(Diagonal?8.933mm) |
|
Pixel?Size?像元尺寸 |
3.45μm?x?3.45μm |
|
Imaging?Area?傳感器有效影像區域 |
8.10mm(H)?x?6.64mm(V) |
|
GSensitivity?靈敏度 |
455mV?with?1/30sAccumulation |
|
Dynamic?Range?動態范圍 |
70dB |
|
A/D?Converter?模數轉換 |
12-bit?Parallel,?8-bit?R.G.B?to?PC |
|
SN?Ratio?信噪比 |
62dB |
|
Spectral?Range?光譜響應 |
400-650nm(with?IR-filter) |
|
Video?Format?&?Frame?Rate?視頻模式 |
6fps?@2048?x?1536,?41fps?@640?x?480?(Multiple?Speed?Level) |
|
Binning?像素疊加 |
1?x?1,1?x?2 |
|
Normal?Exposure?普通曝光能力 |
0.18~77.81ms,?ROIAuto?&?Manual |
|
Long?Exposure?超長曝光能力 |
77.81ms~4mins |
|
Whitebalance?白平衡 |
OnePush?ROI?WhiteBalance/Manual?Temp-TintAdjustment |
|
Color?Rendering?Technique?色彩渲染技術 |
Ultra?FineTM?Color?Engine |
|
Peak?Quantum?Efficiency?峰值量子效率 |
35% |
|
Readout?Noise?讀出噪音 |
N/A |
|
Extinction?Ratio?消光比 |
N/A |
|
Smear |
N/A |
|
Capture/Control?API?軟件接口 |
DirectShow?,Twain |
|
Recording?System?記錄模式 |
Still?Picture?and?Movie |
|
CoolingSystem*?制冷系統 |
Nature,?Optional:?PELTIER?(Semiconductor?Cooling?Module) |
OPERATING?ENVIRONMENT?操作及存儲環境要求:
|
Operating?Temperature?工作溫度 |
-10℃~?50℃ |
|
Storage?Temperature?儲存溫度 |
-20℃~?60℃ |
|
Operating?Humidity?工作濕度 |
30~80%RH |
|
Storage?Humidity?儲存濕度 |
10~60%RH |
|
PowerSupply?供電 |
DC?5V?over?PC?USB?port |
SOFTWARE?ENVIRONMENT?軟件運行環境要求:
|
OperatingSystem?操作系統 |
Microsoft??Windows??XP?/Vista?/?7?(32?&?64?bit) |
|
PC?Requirements?電腦配置 |
CPU:?Equal?to?Intel?Core2?2.8GHz?or?higher |
|
Memory:2GB?or?more |
|
|
USB?port:USB2.0?High-speed?Port |
|
|
Display:17"?orlarger |
|
|
CD-ROM |
